110-43-314-41-001000
Manufacturer:
Mill Max
Mfr.Part #:
110-43-314-41-001000
Datasheet:
Description:

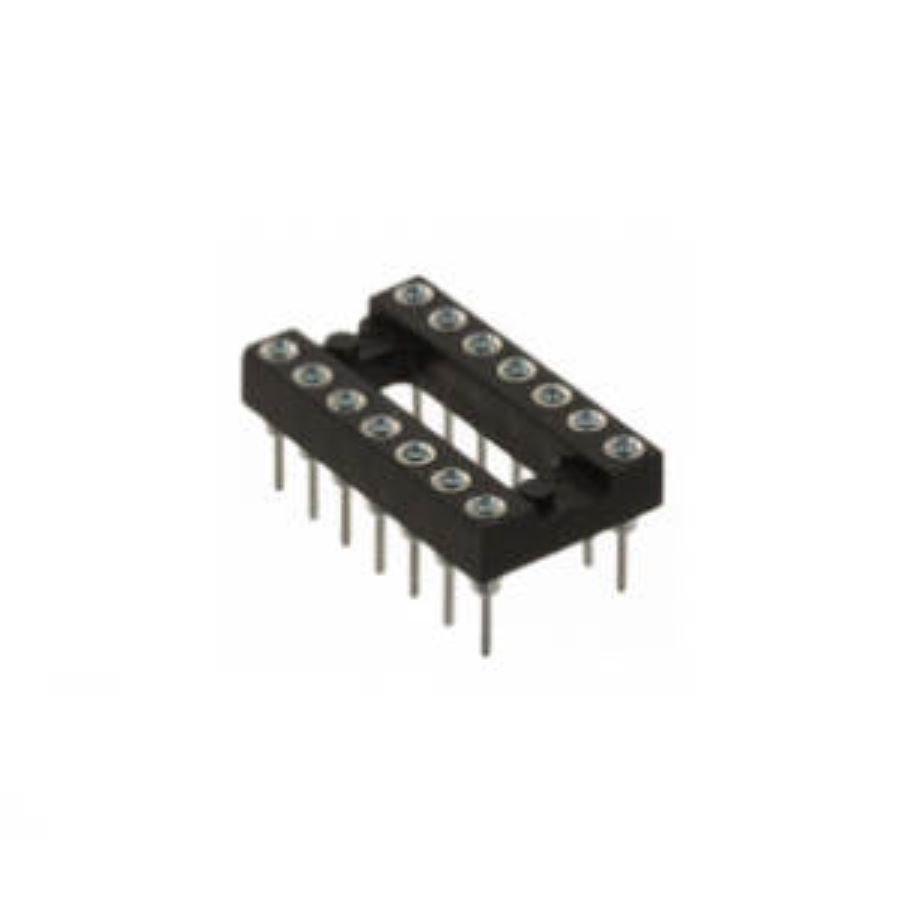

IC and Component Sockets Through Hole DIP, 0.3" (7.62mm) Row Spacing Number of Positions:14 Number of Rows:2 Pitch:2.54 mm Row Spacing:7.62 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 150 V |
| Length | 17.78 mm |
| Width | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 14 |
| Height | 4.19 mm |
| Voltage Rating | 150 V |
| Depth | 10.16 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94V-0 |
| Orientation | Straight |
| Number of Contacts | 14 |
| Connector Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 7.62 mm |
| Insulation Material | Polychlorinated |
| Housing Material | PBT |
| Contact Resistance | 10 mΩ |
| Packaging | Tube |
| Contact Finish - Mating | Gold |
Stock: 3004
Distributors
pcbx
pcbxUnit Price$2.64271
Ext.Price$2.64271
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.64271 | $2.64271 |
| 10 | $2.24824 | $22.48240 |
| 25 | $2.10653 | $52.66325 |
| 50 | $1.97376 | $98.68800 |
| 100 | $1.84935 | $184.93500 |
| 300 | $1.73279 | $519.83700 |
| 500 | $1.62357 | $811.78500 |
| 1000 | $1.52126 | $1521.26000 |
